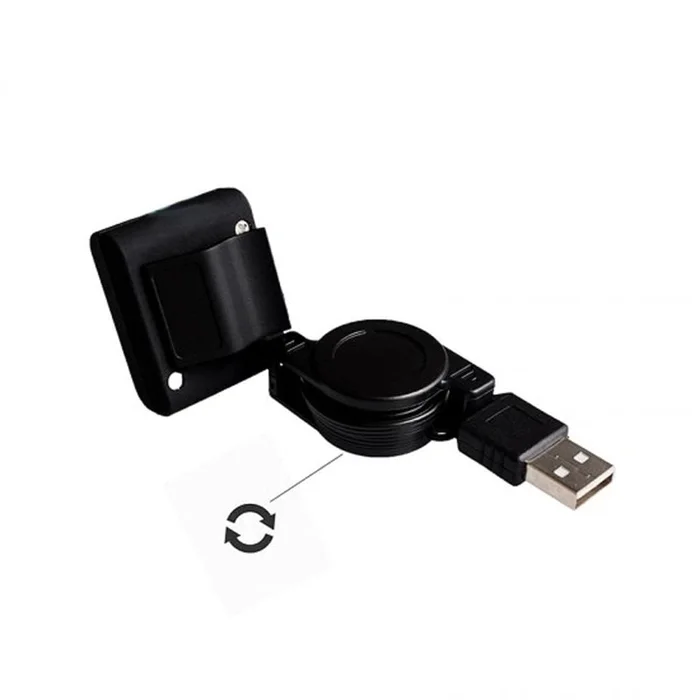

1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi

Description

1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi is a compact size and easy-to-carry one. With a retractable USB cable, it provides great convenience for use. Whats more, it supports 300k pixels and has a USB 2.0 port for convenient use, is really a plug-and-play device. Though small, its max resolution reaches 640 x 480. Thus, this camera is quite suitable for RPi smart cars, robots, etc.

Features:

1. Supports 300k pixels, a maximum resolution of 640480, and VGA/ YUY2 packed formats
2. Dimension: 40mm 15mm 30mm; designed for Raspberry Pi and PC
3. With a retractable USB cable, convenient to store
4. Applies USB 2.0 High-speed Sensor, plug-and-play, no driver installation
5. High definition and true colour images.

6. CE, Rohs compliant, windows and vista approval.

Specification:

Item Type:

Cable

Model Type

Camera Cable

Sensor

1/4 CMOS

Resolution

640HX480V

Max pixels

12M

Picture Format

VGA

Data Format

YUY2

Interface

USB2.0

Frames/S

30fps (VGA), 15fps (XVGA)

Lux Value

6Lux, Min

S/N

48dB

Grey rank

>8

Grey coefficient

0.47

Lens

5G lens F2.0/f3.60

Focus Range

30mm to infinity

View angle

62

Monitor Control

Contrast, saturation, acutance

White Balance and Exposer

White Balance: Manual/Auto White balance range: 2600K~5000K Exposure: Manual/Auto

Max. Operating Current (mA)

<120 mA

Shipping Weight 0.05 kg Shipping Dimensions 8 6 4 cm

Package includes:

1x 1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi
