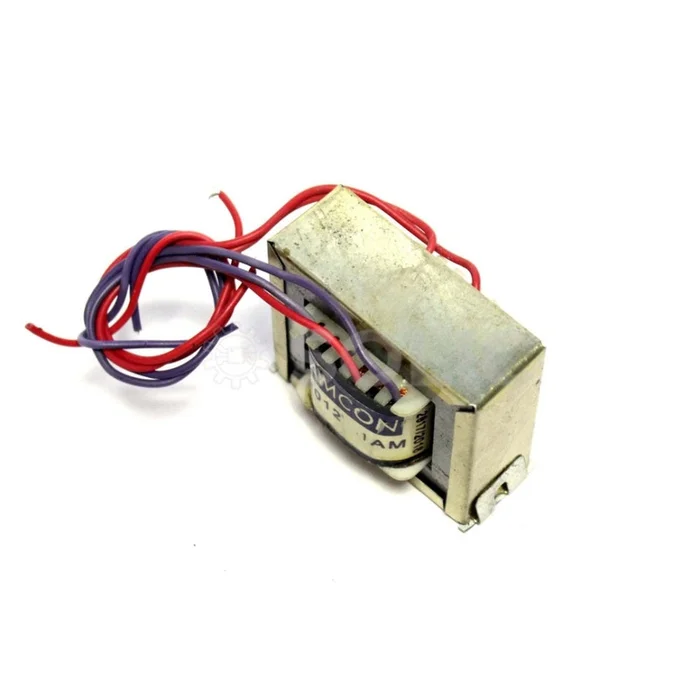

12-0-12 12V 1A Center Tapped Step Down Transformer

Description

12-0-12 1A Center Tapped Step Down Transformeris a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step down transformer reducing AC 230V to AC 12V.

The Transformer gives outputs of 12V, 12V and 0V. The Transformers construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformers core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

Features:-

• Soft Iron Core.
• 1 Amp Current Drain.

Applications of12-0-12 1 Ampere Center Tapped Transformer:-

• DIY projects Requiring In-Application High current drain.
• On chassis AC/AC converter.
• Designing a battery Charger.

Specifications:-

• Input Voltage: 230V AC
• Output Voltage: 12V, 12V or 0V
• Output Current: 1 Amp
• Mounting: Vertical mount type

Package Include:-

1 x 12-0-12 12V 1A Center Tapped Step Down Transformer
