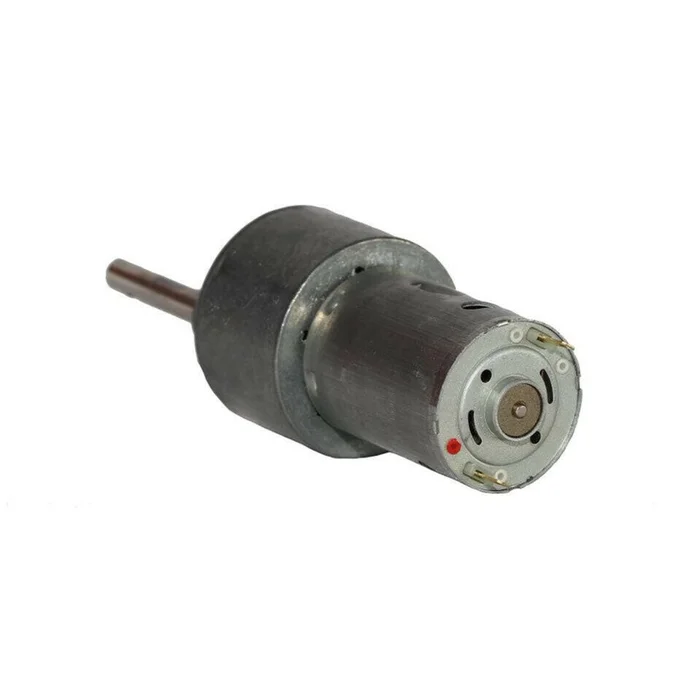

12v DC Johnson Side Shaft Gear, Geared Motor 30 rpm – B Grade

Description

30 RPM 12V Johnson Geared DC Motor Grade-Bhas exclusive moderate torque, best suitable with highly developing capable robots or robotic platform, various automation purposes. Gear box is built to handle the stall torque produced by the motor, the motor Shaft comes with a metal bushing for wear resistance.The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.

This Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling. It is best motor between DC Geared Motor and Side shaft Motors at reasonable cost.


The motor will run smoothly between the voltage range 6 to 18 V DC and give you 30 RPM at 12V supply. It provides the torque of 1.5 kg-cm at 30 RPM.

Features :

• The motor has sturdy construction.
• Shaft equips metal bushes for long life.
• It comes with High-Quality gears.
• The shaft has a hole for better coupling.

Note:

We are selling 2 types of Johnson Motors as Johnson Geared Motor Grade A and Johnson Geared Motor Grade -B, the only difference between them is the quality of materials used for manufacturing the motor. All other specification including look, dimensions, working etc. are same. The Grade A Quality motors shows slightly more torque count than Grade-B Johnson Motors and hence dominates Grade-B quality motors. So, the Johnson Geared Motor Grade A Quality costs little more than Johnson Geared Motor Grade-B.

Applications –

Pan/ Tilt camera, auto shutter, welding machines, water meter, IC Card, grill, oven, cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automic actuator, coffee machine, Towel disposal, lighting , Coin refund devices, Peristaltic pump.

Specifications –

• Voltage – 6v to 18v
• RPM – 30 (at 12v)
• Nominal Voltage – 12v
• No- Load Current – 200mA
• Full Load Current – 7000mA
• Full (Stall) Load Torque – 18 kgcm (max)

Package Include;-

1x12v DC Johnson Side Shaft Gear, Geared Motor 30 rpm – B Grade
