13-in-1 USB Tester – Voltmeter, Ammeter, Multimeter

Description

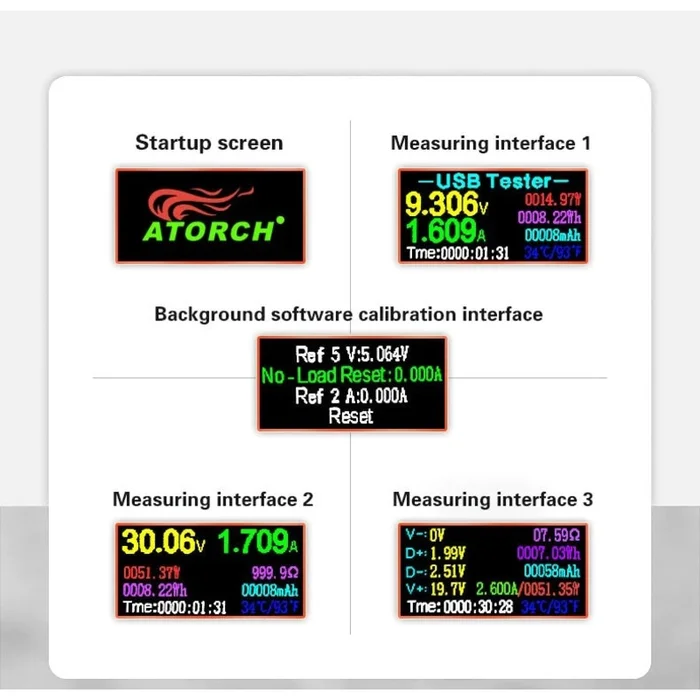

13 in 1 measurement: voltage, current, power, battery capacity, impedance, parameters such as temperature, energy and time, etc.

It is the perfect device for measuring power flow through a USB port or equivalent setup.

Specifications:-

• Voltage measuring range: 4V ~ 30 V; precision: 0.01 V
• Current measuring range: 0.00A ~ 5.00 A; precision: 0.01 A
• Power cumulative range: 0 ~ 999999 Wh; precision: 0.001 Wh
• Capacity range: 0 ~ 999999 mAh, precision: 0.001 Ah
• Temperature: 0C ~ +80 C; precision: 1 C
• D+ Voltage: 0.000V ~ 2.999 V; precision: 0.001 V
• D- Voltage: 0.000V ~ 2.999 V; precision: 0.001 V
• Load impedance: 0 ~ 999 ; precision: 1
• Power metering range: 0 ~ 299.999 W; precision: 0.001 W
• Maximum time recorded: 999 H 59 M 59 S; precision: 1 second
• Product size: 66 x 24 x 15 mm
• Since the power flow: < 0.003 A (< 3mA )
• Working temperature: -10 C to +60 C
• Measurement rate: 0.5 hertz
• Weight: 16 grams

NOTE: Colour of the product may differ.

Product Includes:-

1x 13-in-1 USB Tester – Voltmeter, Ammeter, Multimeter
