1602 Display 16×2 3.3V (BLUE)

Description

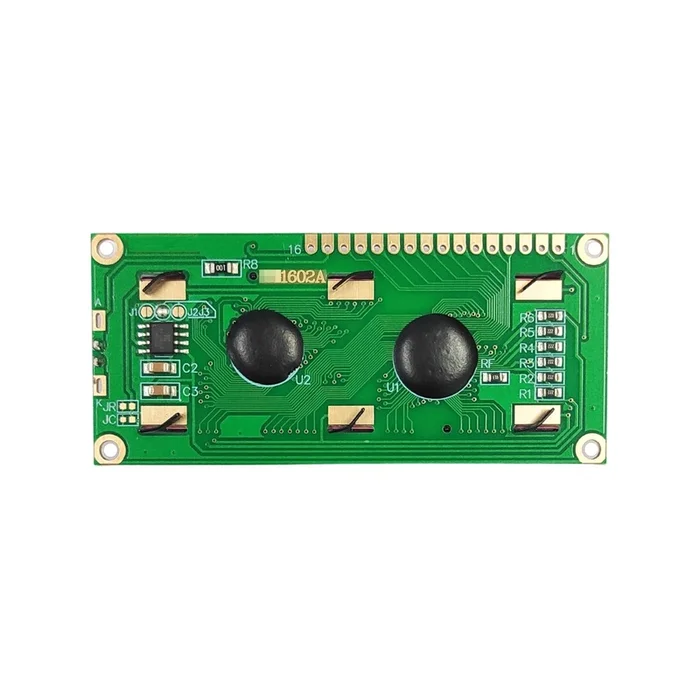

This is a popular 16×2 LCD With Blue Backlight display. It is based on the HD 44870 display controller which makes it is easy to interface this lcd most microcontrollers.

Its extreme popularity ensures that no matter which micro controller platform you are using, you will definitely find ready libraries to use this LCD. It works of 3.3v and has a blue backlight which can be switched on and off as desired. The contrast of the screen can also be controlled by varying the voltage at the contrast control pin (pin 3).

LCD modules are very commonly utilized in most embedded projects, the rationale being its cheap price, availability and programmer friendly.Most folks would have encounter these displays in our day to day life, either at PCOs or calculators.

The appearance and therefore the pinouts have already been visualized above now allow us to get a touch technical.

If you would like to feature some visual output to your Arduino projects, youll need a display. If you would like only little to display, the LCD1602 Parallel LCD Display may be a quite good solution

This is a popular 16×2 LCD With Blue Backlight display. It is supported the HD 44870 display controller which makes it’s easy to interface this lcd most microcontrollers.Its extreme popularity ensures that regardless of which micro controller platform you’re using, you’ll definitely find ready libraries to use this LCD.

It works of 3.3v and has a blue backlight which can be switched on and off as desired. The contrast of the screen also can be controlled by varying the voltage at the contrast control pin (pin 3).

162 LCD is known as so because; it’s 16 Columns and a couple of Rows. There are tons of combinations available like, 81, 82, 102, 161, etc. but the foremost used one is that the 162 LCD.

So, it will have (162=32) 32 characters in total and each character will be made of 58 Pixel Dot. We know that each character has (58=40) 40 Pixels and for 32 Characters we will have (3240) 1280 Pixels. Further, the LCD should even be instructed about the Position of the Pixels.

Hence it’ll be a busy task to handle everything with the assistance of MCU, hence an Interface IC like HD44780is used, which is mounted on the backside of the LCD Module itself.The function of this IC is to urge the Commands and Data from the MCU and process them to display meaningful information onto our LCD Screen.

Specifications:-

• Controller OR driver: HD44780 Equivalent LCD, Controller/driver Built-In
• Backlight Color: Blue
• Voltage: 3.3V DC
• Frequency: 50 Hz
• Character Capacity: 16 X 2
• Display Size: 80 X 36 X 12.5 mm
• Model Number: 1602

Product Includes:-

1x 1602 Display 16×2 3.3V (BLUE)
