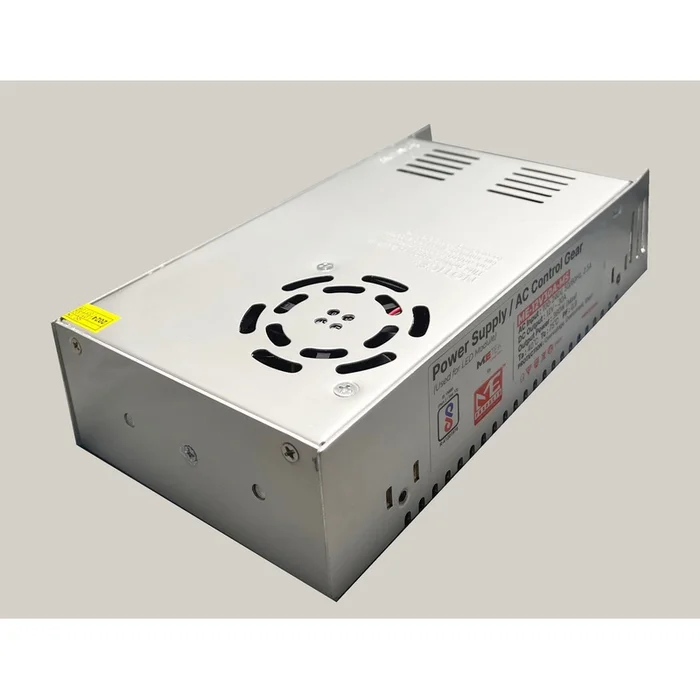

METEK 5V 60A 300W Enclosed Power Supply ME-05V 60A-MS High Current Industrial SMPS

Description

The METEK 5V 60A 300W Enclosed Power Supply (Model ME-05V60A-MS) is a robust and efficient Switched Mode Power Supply engineered for high-demand industrial and commercial applications. It delivers a powerful 5V DC output at 60A, providing a total power capacity of 300W, making it ideal for high-load systems such as LED arrays, automation controls, embedded computing, and lab equipment. Designed with a heavy-duty aluminum enclosure, the unit is cooled through free air convection, eliminating fan noise while maintaining excellent heat dissipation. Built-in safety features such as overload, overvoltage, and short circuit protection with auto-recovery ensure continuous and safe operation. With a wide AC input range of 100V to 264V, the unit supports global use and is CE certified for performance and safety compliance. Its compact body and mounting options make it easy to install in control panels and machinery enclosures.

---

Application

High-density LED light installations
Powering surveillance camera setups
Raspberry Pi, Arduino, and microcontroller circuits
Automation and industrial robotics systems
Research lab power benches and test equipment

---

Feature

5V DC output at 60A providing 300W total power
Rugged aluminum housing with passive air cooling
No fan required for silent operation
Overload, overvoltage, and short circuit protection
Compatible with wide input voltage 100V to 264V AC
CE certified for industrial reliability
Compact design with screw or panel mounting support

---

Specifications

Parameter Specification Model Number ME-05V60A-MS Output Voltage 5V DC Output Current 60A Output Power 300W Input Voltage AC 100V to 264V, 50 or 60Hz Output Voltage Adjustment 20 percent Cooling Method Free air convection Protection Features Overload, Overvoltage, Short Circuit Efficiency Greater than 80 percent Enclosure Type Industrial-grade aluminum casing Mounting Type Panel or screw mount Power Indicator LED status indicator Certification CE Operating Temperature Minus 10 to 60 degree Celsius Storage Temperature Minus 20 to 85 degree Celsius Dimensions 215 mm x 115 mm x 50 mm Weight 750 grams

---

Package Include

1 x METEK 5V 60A 300W SMPS Power Supply ME-05V60A-MS
