RED 12 mm 220 V Momentary Metal Switch

Description

Description: –

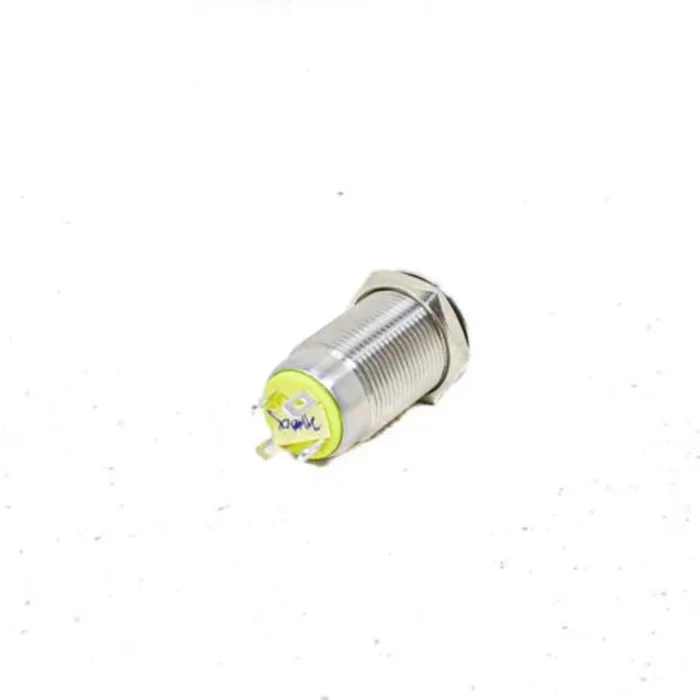

This Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with a Led Light ring around the push area of the switch. These switches are available in various LED light Colors, you can choose for your application purpose

Please note: In case of any Customization, before ordering contact sales team on[email protected]

Specification: –

1. Operating Voltage (VDC): 220V
2. Operating Current (mA): 2000
3. Light Color: Red
4. Switch Type: Momentary
5. Mounting Hole Diameter (mm): 12
6. Contact Type: Solder Type
7. Contact Material: Silver Alloy
8. Contact Resistance: 50 M
9. Insulation Resistance (M): 1000
10. Operating Temperature Range (C): -20 to 55
11. Operation Force: About 3-5N
12. Body Material: Stainless Steel and Plastic
13. & Electrical Lifecycle: 100,000
14. Protection Standard: IP65

Package Includes:

1 x RED 12 mm 220 V MomentaryMetal Switch
