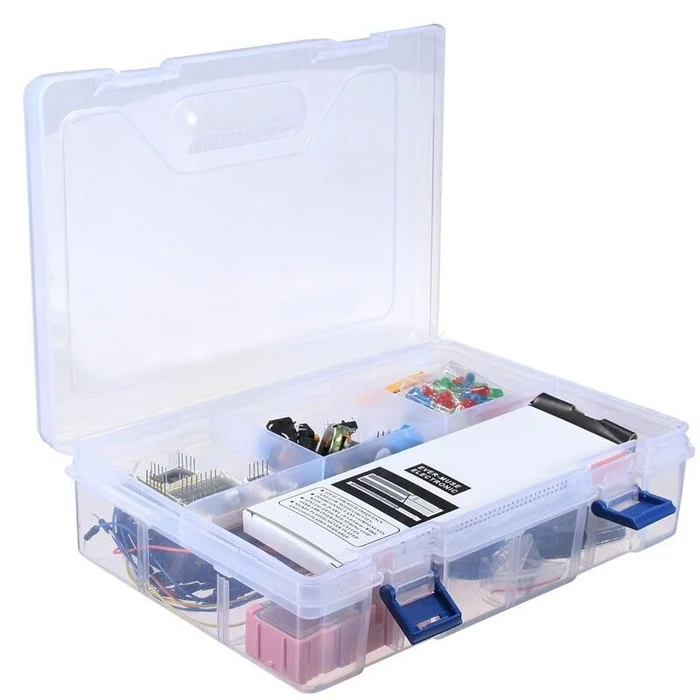

Description
This Arduino Mega Basic Kit is great for absolute beginners. The kit comes with numbered components that would create 15 unique projects from a blinking LED to an RGB light dimmer. A good thing about this MEGA kit, that is very under-appreciated when it comes to electronics kits It is never a bad idea to have extra parts like LEDs, jumper wires, resistors around. Beginners can learn the basics of Arduino programming as well as the expert in programming. From this kit,
Specification:-
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB of which 8 KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB.
- Clock Speed: 16 MHz
- USB Host Chip: MAX3421E
- Length:101.98mm/4.01in
- Width:53.63mm/2.11in
- Height:15.29mm/0.60in.
Package Includes :
1 X Mega 2560 r3,
1 X USB Cable,
30 X male to male jumper Wire,
1 X 830 Breadboard,
LED red yellow green X 15(each 5pcs),
1 Pack Resistor,
1 X Female to male dupond line,
1 X Potentiometer,
1 X Possitive Buzzer ,
1 X Active Buzzer,
1 X 74HC595,
1 X Infrared receiver,
1 X LM35 sensor,
1 X Flame Sensor,
1 X Ball Switch,
1 X Photoresistor,
1 X Key button,
1 X Remote control,
1 X 4-digit display tube,
1 X 8*8 Dot matrix module,
1 X 1digit display tube,
1 X Stepper motor driver board,
1 X Stepper motor,
1 X 9g Servo,
1 X 1602 LCD,
1 X XY joystick module,
1 X Temperature module,
1 X Water test module,
1 X RFID Module,
1 X RFID keychain,
1 X RFID Card,
1 X Sound Module,
1 X Relay Module,
1 X Clock Module,
1 X 4*4 Key board,
1 X RGB 3 color module,
1 X 9V battery Snap,
1 X HCSR501,
1 X HCSR04.
