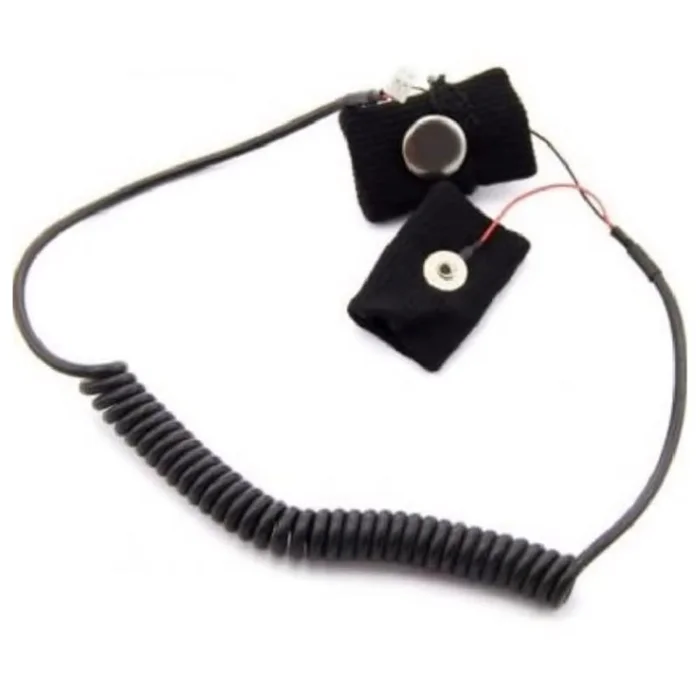

Seeed Studio Grove GSR sensor

Description

Grove GSR Sensor stands for galvanic skin response and it is a method of measuring the electrical conductance of the skin. It can be used to reflect the human emotional activity. When we are emotionally stressed or have strong expressions on the face, sympathetic activity increases and promotes the secretion of sweat glands, which increases the skins electrical conductivity.

Grove GSR allows you to spot such strong emotions by simply attaching two electrodes to two fingers on one hand. It is an interesting gear to create emotion related projects like sleep quality monitor. In some galvanic skin response devices such as lie detectors, this scientific principle is also applied.

---

Useful Link:

/Grove-GSR_Sensor/

---

Features:

1. Detects conductance of the skin
2. Finger Straps for electrodes

Specification:

Item Type:

Sensor

Model Type

GSR Sensor

Sensitivity (dBm)

Adjustable via a potentiometer

Input signal

Resistance, NOT Conductivity

Material:

Nickel

Shipping Weight 0.03 kg Shipping Dimensions 6 5 2 cm

Package Includes:

1 x Grove GSR sensor

1 x Galvani Skin Response Accessory

1 x Grove cable
