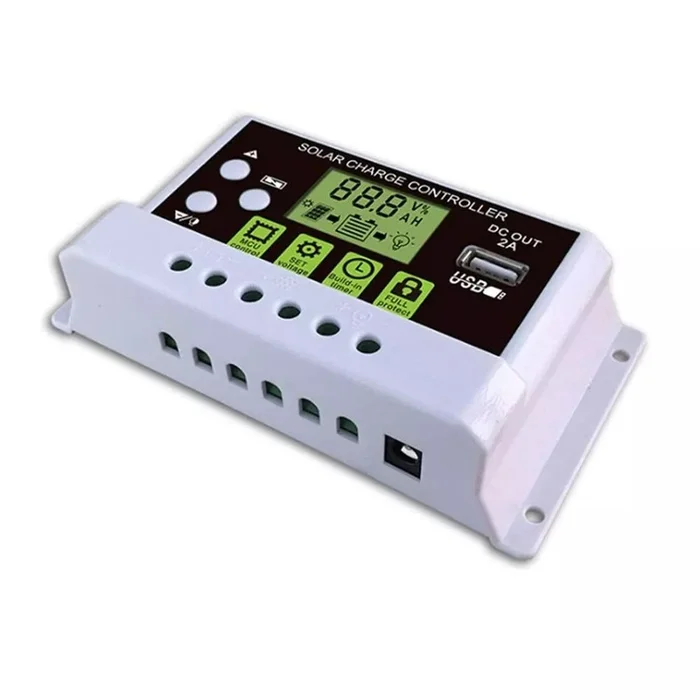

Solar Charge Controller, Intelligent Lithium Battery Regulator for Solar Panel LCD Display with USB Port 12V/24V (10A)

Description

This is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.

Features

1. Built-In Industrial Micro Controller
2. Big LCD Display
3. Full 4 Stage PWM Charge Management
4. Dual MOSFET Reverse Current Protection
5. Low Heat Production

specification-

Charging Current (A) 10 Discharge Current (A) 10 Max. Solar Input (V) <50 USB 3A@5V Operating Temperature Range (C): -35 to 60 Length (mm): 150 Width (mm) 78 Height (mm) 35 Weight (gm) 150 Shipping Weight 0.16 kg Shipping Dimensions 15 8 4 cm

Package includes:-

1x Solar Charge Controller, Intelligent Lithium Battery Regulator for Solar Panel LCD Display with USB Port 12V/24V (10
