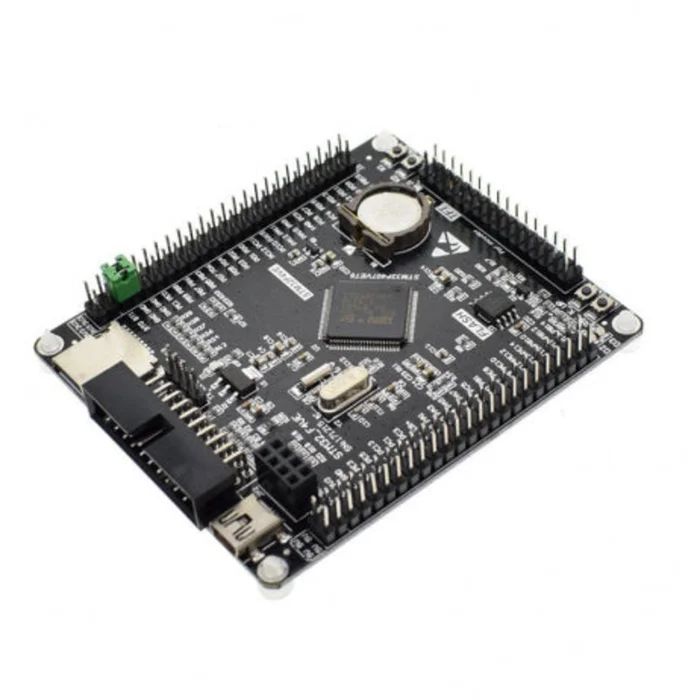

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

Description

The STM32F405xx and STM32F407xx family is based on the high-performance ArmCortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

NOTE : STM32F407VET6 and STM32F407ZGT6 on chip working is same.

Features:

1. Core: Ar 32-bit Cortex-M4 CPU with FPU
2. LCD parallel interface, 8080/6800 modes
3. Low-power operation
4. 312-bit, 2.4 MSPS A/D converters
5. 212-bit D/A converters
6. General-purpose DMA
7. Up to 17 timers
8. Up to 140 I/O ports with interrupt capability

Specification:

Item Type:

Other Board

Based On:

STM32 Based

Flash Memory:

1MB

Model

STM32F407VET6

Core:

ARM 32 Cortex M4 CPU

Debug Mode

SWD

Number of I/O

140

Memory:

192+4 Kbytes SRAM, 1Mbyte Flash

D/A Converters

2 x 12-bit

Timer

17

Length (mm):

73

Width (mm):

85

Height (mm):

15

Weight (g):

66

Shipping Weight 0.07 kg Shipping Dimensions 10 15 2 cm

Package Includes:

1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

10 x Female-Female Jumper Cable

1 x USB Cable
