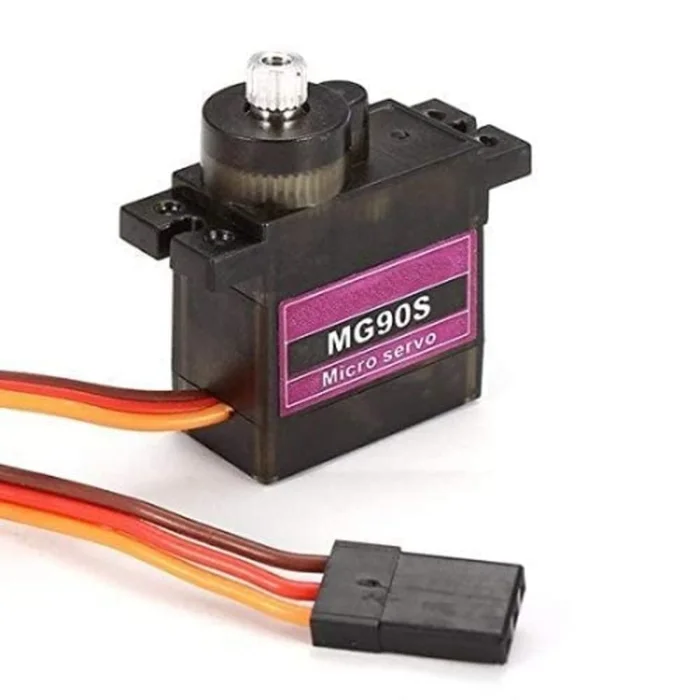

Tower Pro MG90S Metal Gear Servo Motor (180 Degree Rotation)

Description

The Tower Pro MG90S is a compact, high-performance, metal gear servo motor ideal for a wide range of hobby and robotics applications. It is well-suited for tasks requiring 180-degree rotation with precise angular control, such as in robotics, RC vehicles, and model projects. With its metal gear system, this servo offers enhanced durability and longevity compared to plastic gear servos. The servo operates within a voltage range of 4.8V to 6.0V, providing a balance between torque and speed for small to medium-duty applications.

The dual bearing support provides smooth and reliable rotation while minimizing friction, making the MG90S a solid choice for efficient motion control in various systems.

---

APPLICATION

• Robotics: Controlling joints or limbs of small robots.

• RC Vehicles: Used for steering, control surfaces, or actuators.

• Modeling: For applications like animatronics or servo-controlled mechanisms.

• DIY and Automation: A great option for hobbyists building custom mechanical systems.

---

FEATURES

• Metal Gears: Offers increased durability and reliability.

• 180 Rotation: Supports wide-angle movement for various applications.

• Dual Bearings: Ensures smoother, more efficient motion with reduced wear.

• Compact and Lightweight: Ideal for space-constrained applications.

• Analog Modulation: Works with standard analog control signals.

• Pulse Cycle and Width Support: Compatible with most servo controllers (pulse cycle: 20 ms, pulse width: 400-2400 s).

---

SPECIFICATIONS

Specification Details Modulation Analog Torque at 4.8V 2.20 kgcm Torque at 6.0V 2.50 kgcm Speed at 4.8V 0.11 sec/60 Speed at 6.0V 0.10 sec/60 Weight 0.49 oz (14.0 g) Length 0.91 in (23.1 mm) Width 0.48 in (12.2 mm) Height 1.14 in (29.0 mm) Gear Type Metal Rotation/Support Dual Bearings Rotational Range 180 (Standard) Pulse Cycle 20 ms Pulse Width 400-2400 s

---

PACKAGE INCLUDES

• 1 x Tower Pro MG90S Metal Gear Servo Motor
