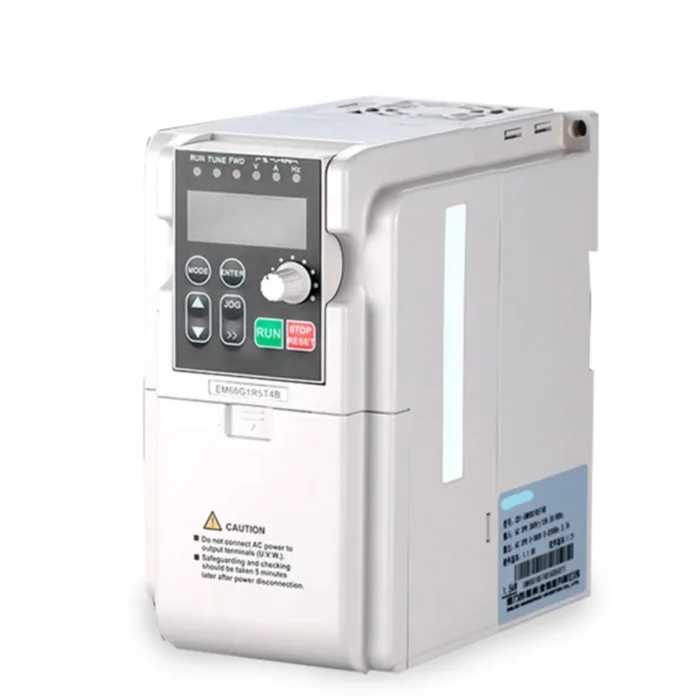

Variable-frequency Drive VFD 3.7 KW INPUT-AC 3PH 380V OUTPUT-AC 3PH 380V

Description

The 3.7KW VFD with 380V 50/60Hz AC Drive, offering 3-phase input and an output frequency range of 0-3200Hz, is engineered for precision motor control in industrial applications. With a 3.7 KW power rating, this VFD is well-suited for applications demanding higher performance, such as pumps, fans, compressors, CNC machines, and other industrial equipment.

Designed to deliver smooth, adjustable speed control, this VFD offers flexibility for operations requiring low to high-speed motor control. The 0-3200Hz output allows for extremely high-speed operation, which makes this drive highly versatile and adaptable to a variety of specialized applications that demand precise motor control and high-speed performance.

The drive features advanced speed regulation, enhancing energy efficiency, and reducing wear and tear on the motor, which in turn extends motor life. It includes important protection mechanisms like overload protection, short-circuit protection, and over-voltage protection to ensure safe and reliable operation.

With easy installation and a compact design, the 3.7KW VFD fits seamlessly into small and medium industrial machines, and it is ideal for environments where high-speed precision and energy-efficient motor control are critical.

---

Short Application

The 3.7KW VFD with 3-phase input and 0-3200Hz output is suitable for controlling three-phase motors in applications such as high-speed fans, pumps, compressors, CNC machines, conveyors, and other industrial equipment that require high-frequency operation and precise speed control.

---

Short Features

• 3.7KW power rating for medium-to-high power applications.
• 380V 3-phase input for industrial and commercial power systems.
• Output frequency range 0-3200Hz for flexible, high-speed motor control.
• Precise speed and torque control to optimize motor performance and reduce energy consumption.
• Overload protection, short-circuit protection, and over-voltage protection for safety.
• Cooling via natural air to prevent overheating.
• Compact design for easy installation in space-constrained environments.
• Energy-efficient operation to reduce operating costs and extend motor life.

DATA SHEET:- CLICK HERE

---

Specifications

Feature Specification Power Rating 3.7 KW Input Type Three-Phase Input Frequency 50/60Hz Input Voltage 380V (Three-phase) Output Voltage 380V (Three-phase output) Frequency Range 0-3200 Hz Control Type V/f (Volts per Hertz) Motor Type Three-phase induction motor Overload Protection Yes Short Circuit Protection Yes Over-voltage Protection Yes Cooling Natural Air Cooling Dimensions Compact (varies by manufacturer) Weight Approx. 3.5-4.5 kg Applications High-speed fans, pumps, compressors, conveyors, CNC machines, industrial machinery

---

Package Includes

• 1 x 3.7KW VFD (Variable Frequency Drive)
• 1 x User Manual
