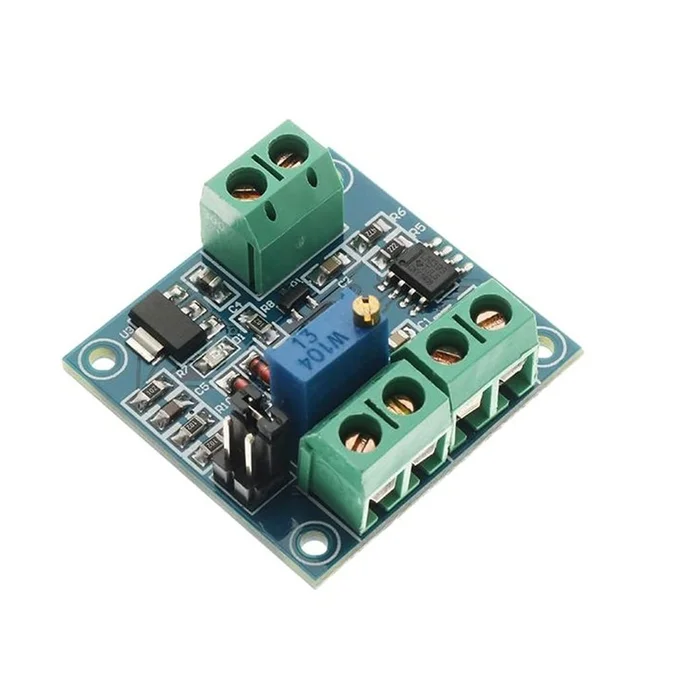

Voltage to PWM Converter Module

Description

The voltage to pulse width modulation (PWM) can transform analog voltage into 0-100% PWM duty cycle output. The converted voltage range can be selected (using jumper) either to be from 0 to 5V or 0 to 10V. For example, if the selected range is 0 to 10v, then 10V will correspond to 100% duty cycle, 9V correspond to 90% duty cycle and so on. The precision of the converted value can be fine- tuned using the potentiometer.

Voltage to PWM Pinouts:

• VCC: Working power supply 5V-12V.
• GND: working power ground
• VIN: input voltage 0-10V
• GND: Input signal negative terminal.
• GND: Output PWM ground.
• PWM: output PWM

Specification :-

• Operating Voltage: DC 7-12V
• Conversion Range (Adjustable): 0-5V or 0-10V into 0-100% PWM
• Error Tolerance: 1%-3%
• Frequency50KHz
• Working temperature:-25~85

Product Includes:-

1x Voltage to PWM Converter Module
