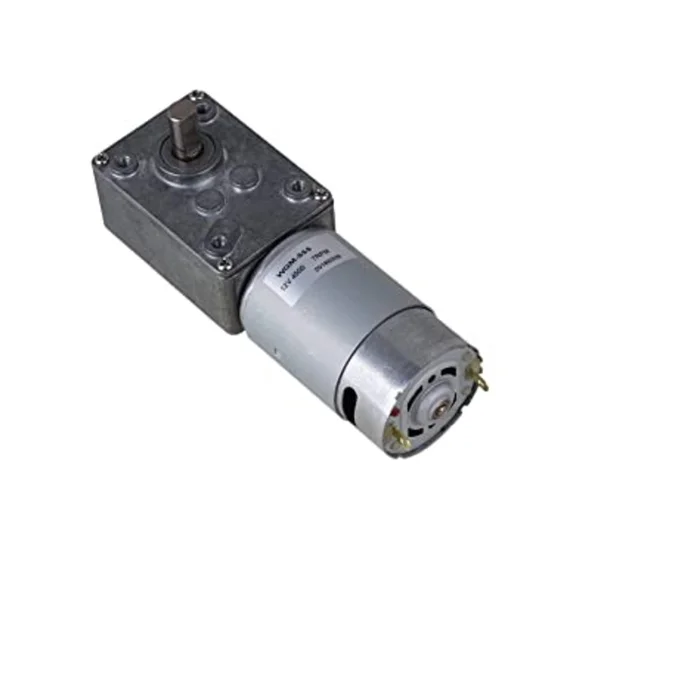

Worm Gear Box Reduction Motor 12V 88rpm 30 kg-cm Torque – WGM555126000-68K

Description

The Worm Gear Box Reduction Motor (12V, 88 RPM, 30 kg-cm Torque – WGM555126000-68K) is designed for high-torque applications where precise control and smooth motion are required. This motor features a worm gear reduction system that provides excellent mechanical advantage, reducing the speed and increasing the torque output. With an 88 RPM speed at 12V, this motor is ideal for applications that demand high torque at low speeds, such as heavy-duty robots, conveyor systems, or mechanical actuators.

Operating at a 12V DC input voltage, the motor provides an impressive 30 kg-cm of torque at full load, making it perfect for powering heavy components or systems that require substantial force. The worm gear provides a self-locking mechanism, preventing backdriving and ensuring stability in applications where the motor should hold a position without drifting.

Built with durable materials and designed for long-lasting performance, the WGM555126000-68K Worm Gear Box Reduction Motor is suitable for a wide range of industrial, robotic, and automation systems.

Features :

ALL-METAL GEARS: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the turbo worm gear box motor body.

D SHAPED OUTPUT SHAFT: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the turbo worm gear motor are improved, extremely durable.

GEAR DC MOTOR with MICRO-TURBINE WORM: You can change the wiring-connection to change motor rotation. Low noise and high torque.

Short Application

• Robotics: Perfect for driving wheels, actuators, or robotic arms that require high torque and precise low-speed control.

• DIY Projects: Ideal for use in small automated systems, such as conveyor belts, actuators, or positioning systems.

Specifications

Specification Details Model WGM555126000-68K Motor Type DC Carbon Brush Motor Gear Ratio 68:1 Operating Voltage 12V DC Rated Current 1.1A Rated Base Motor RPM 6000 RPM Rated Speed 88 RPM Rated Torque 30 kg-cm Operating Temperature -40C to +100C Relative Humidity 20% to 85% RH Housing Material Metal Shaft Type D-Type Motor Height 27mm Motor Width 40mm Motor Length 115mm Shaft Diameter 8mm Shaft Length 15mm Motor Weight 400g

Package Include:-

1xWorm Gear Box Reduction Motor 12V 88rpm 30 kg-cm Torque – WGM555126000-68K
