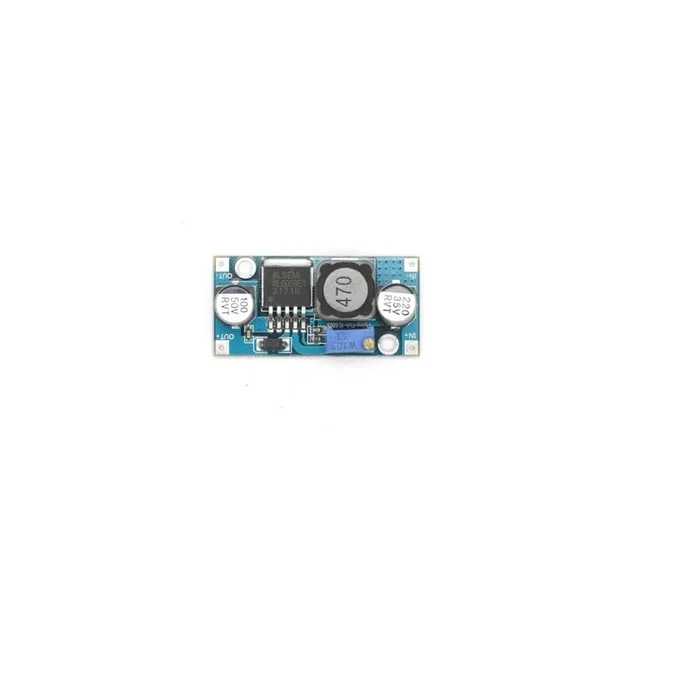

XL6009 DC – DC Step-up converter performance ultra LM2577 booster circuit board

Description

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technologyLM2577. XL6009 boost module at a lower cost, superior performance.

It equips4A high-efficiency MOSFET switches, so as toprovide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins

• IN+ input positive
• IN- input negative!
• OUT+ output positive
• OUT- output negative

Features :

1. The performance is much higher than LM2577.
2. Non-isolated Boost converter.
3. It has a non-synchronous rectifier.
4. Small and Handy voltage regulator module.

Specification:

Input Voltage (V)

3 to 32

Input Current(A)

4

Output Voltage(V)

5 ~ 35

Output Ripple(mV)

50

Efficiency

94%

Switching Frequency(KHz)

400

Load Regulation

0.5%

Voltage Regulation

0.5%

Length (mm):

43

Width (mm):

20

Height (mm):

12

Weight (g):

12

Shipping Weight 0.016 kg Shipping Dimensions 5 3 2 cm

Package Includes :

1 x CN6009 XL6009 DC-DC Step-up converter module.
